Plastic Injection Molding Machine with Servo Motor(KS130)

Basic Info

Model No.: KS130

Product Description

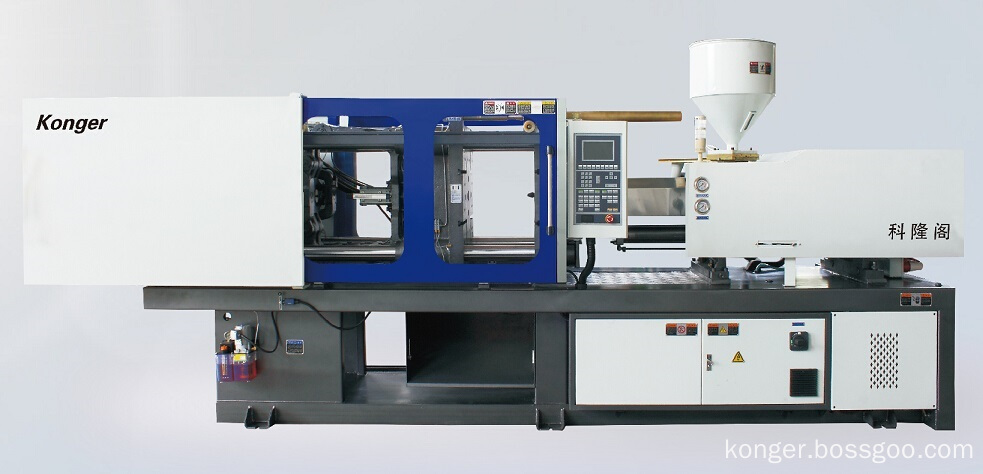

Servo Injection Molding Machine


Konger Series Machinery Specifications KS130
A B C
Injection Unit Screw Diameter mm 40 42 45
Screw L/D Ratio L/D 20.8 19.8 18.5
Shot Volume cm3 220 242 278
Injection Weight(PS) g 200 220 253
Injection Rate cm3/s 102 110 125
Injection Pressure Mpa 221 204 180
Screw Speed rpm 220
Clamping Unit Clamping force KN 1300
Toggle Stroke mm 360
Space Between Tie-Bars(WxH) mm 420x380
Max. Mold Height mm 400
Min. Mold Height mm 150
Ejector Stroke mm 120
Ejector Tonnage KN 40
Others Max. Pump Pressure Mpa 16
Motor Power KW 12
Heater Power KW 9.5
Machine Dimension m 4.4x1.40x1.80
Oil Tank Capacity L 220
Machine Weight ton 3.8











KS130 normal/standard Injection Molding Machine is defined as the universal plastic processing industry. It adopts international famous brand high quality parts, have good stability, long lifespan, high performance, and can produce most of plastic products.


Beyond conventional machine 50% of mechanical strength, parallel bars, balance injection system.


Chinaplas








Contact us if you need more details on Injection Molding Machine With Robot. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Plastic Machines/Manufacturing、Conventional Injection Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Standard/Normal Plastic Injection Molding Machines > Servo Plastic Injection Molding Machines
