Basic Info

Model No.: KS360

Product Description


_1X34E~0T_$Z`N~CA$`63%E

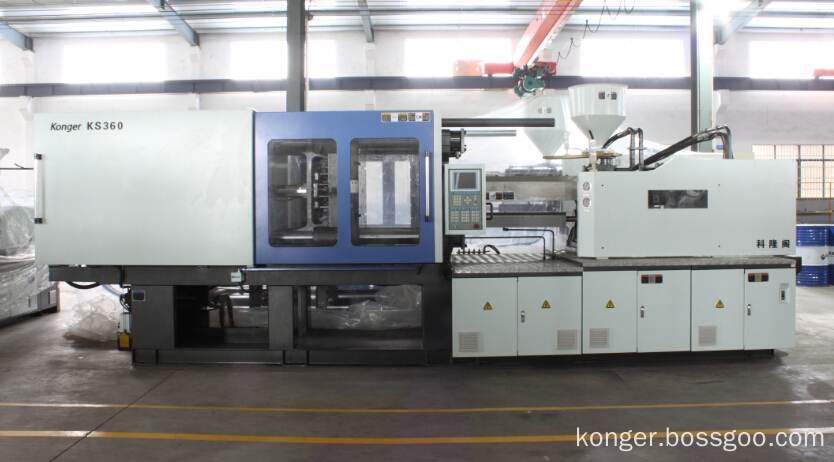

Konger Series Machinery Specifications KS360
A B C
Injection Unit Screw Diameter mm 65 70 75
Screw L/D Ratio L/D 22.5 21 19.5
Shot Volume cm3 1161 1347 1546
Injection Weight(PS) g 1056 1225 1407
Injection Rate cm3/s 337 368 422
Injection Pressure Mpa 208 179.6 156.4
Screw Speed rpm 155
Clamping Unit Clamping force KN 3600
Toggle Stroke mm 660
Space Between Tie-Bars(WxH) mm 660x660
Max. Mold Height mm 680
Min. Mold Height mm 250
Ejector Stroke mm 160
Ejector Tonnage KN 70
Others Max. Pump Pressure Mpa 16
Motor Power KW 31
Heater Power KW 24.6
Machine Dimension m 7.21x1.9x2.34
Oil Tank Capacity L 620
Machine Weight ton

12.

5









We are professional plastic Injection Molding Machine manufacturer for all kinds of production requirements, Clamping force from 110 to 1600T, injection weight from 140 to 10000g. With best price/ performance ration of any machine on the market.
